title

slug

date

Bits and functions

The workings of a classical computer can be reduced to a series of operations on the binary digits (bits) 0 and 1. A computational process can be represented as a function: data (a series of bits) enters the function in one state and exits in another state. This new state is a product of the function.

The most primitive bit operations are equivalent to the truth-conditions of the logical connectives of Boolean algebra. In logic, the Boolean values are true and false but we will use 1 and 0, to represent these states as bits. There are multiple logical connectives but we will mostly focus on AND, OR, and NOT for simplicity.

The logic of each Boolean connective can be expressed as a function.

NOT can be represented as follows;

f(x) = \lnot (x)

NOT (¬) is a unary operator which means it takes one operand (x). We pass a single bit as the operand and the function inverts its value. We can utilise logical truth tables to represent all possible inputs and outputs for the operator:

x	f(x) = NOT(x)
1	0
0	1

If NOT receives 0 as an input it will return 1 as the output. If it receives 1 as the input it will return 0 as the output.

AND (\land) and OR(\lor) are binary operators: they receive two operands as input. Therefore we pass two bits to the function. As a bit can be one of two values (0 or 1), there are four possible inputs.

For AND this gives us:

x	y	f(x) = x AND y
1	1	1
0	1	0
1	0	0
0	0	0

AND returns 1 if both input bits are 1, otherwise it returns 0.

OR returns 1 if one or both bits are 1, otherwise it returns 0:

x	y	f(x) = x OR y
1	1	1
0	1	1
1	0	1
0	0	0

Logic gates

The logical function of each of the Boolean operators is implemented at the level of computer hardware by logic gates. Each gate is represented with one or more input pins and a single output pin through which the bits enter and exit. The pins feed into and out of a chip which executes the function.

The diagram below shows the logic gates for AND, OR, and NOT.

Logic gates are an abstraction. In reality, you cannot see a logic gate in a computer. If we were to look inside a chip that implements gate logic we would see an arrangement of transistors, capacitors and resistors connected by wires. These components are configured to mimic the behaviour of the logical operators.

Nand to Tetris starts at the level of gates and does not discuss how the individual gates are realised in electronic circuits. However, I think it is useful to understand the basics of the electrical engineering so we might begin to grasp how it is possible to go from an inert block of metal and silicon to fully functioning computer.

The electronic implementation of gate logic

We can start with the concept of a switch. Consider what is happening when we turn on a light using a wall switch.

When the switch is off, the electrical circuit that connects the bulb to the voltage source is broken. As a result, there is no potential difference between the terminals and the current cannot reach the bulb. When the switch is on, the circuit is complete and the current flows freely to the bulb.

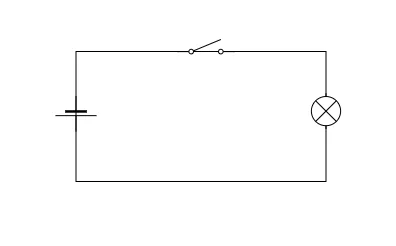

This is represented by the following simple schematic:

This circuit embodies the logic of a NOT gate. Think of the light as 1 and the absence of light as 0. When the switch is on, 1 is the output and 0 is inverted. When the switch is off, 0 is the output and 1 is inverted.

This scenario can be developed to represent the logical behaviour of an AND gate. Imagine now that this room is a bit strange and there are two switches controlling the operation of the bulb. If both switches are off the bulb will not emit light. If one of the switches is on and the other is off the bulb will not emit light. The bulb will only emit light when both switches are on.

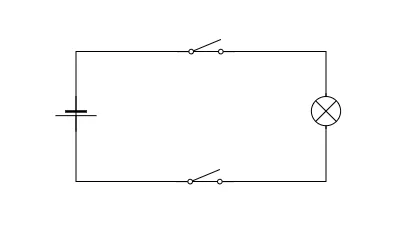

The schematic for this scenario embodies the logic of the Boolean AND connective:

Switch-controlled circuits are functionally equivalent to what actually happens inside a computer when logical conditions are implemented via gates. Electrical charge is directed along different routes depending on the value of an on/off condition. However, in modern computers the actual component that controls the flow of current is not a switch.

Whilst we could construct primitive computers with switches, the average CPU has more than a million logic gates. Controlling this number of gates with mechanical switches would be practically impossible and even if it were achieved, it would result in extremely slow processing times.

This is an important point because the computational power of logic gates emerges from their behaviour at scale. Collections of gates are combined to express complex logical conditions that are a function of their individual parts. For this to be possible, the output of a collection of gates needs to be able to be fed into another collection and this it would be difficult to achieve in a mechancial switch-based system.

Instead of mechanical switches, computers use transistors. Transistors are semi-conductors: components that possess an electrical conductivity between that of a conductor and an insulator. This property means they can both impede and expede the flow of electrical charge.

There are different types of transistors but we will focus on basic Bipolar Junction Transistors:

Applying a small amount of current at the base terminal (B) of a BJT allows a larger current to flow from the collector (C) to the emitter (E). Removing current at the base terminal reduces the flow from collector to emitter. This is because the the emitter and collector are composed of a semi-conductor that has a surplus of electrons (negatively charged) whereas the base has a deficiency of electrons (positively charged). This state creates a modifiable potential difference, reducing or increasing the current based on the voltage.

The base terminal of a transistor is another way of implementating the gate-like behaviour we previously achieved with mechanical switches. However, there is an important difference. With a switch, the circuit is actually broken when it is in the "off" state and there is no current flowing at all. With a transistor, the current drops in the "off" state but a voltage remains.

Because a continuous circuit is an analogue system, the quantities of resistance, voltage and current are not discrete values, they will vary over a given range. Thus "off" corresponds to "low" voltage and "on" corresponds to "high" voltage. The specific stipulation will depend on the circuit design but it is typically the case that a state of 1 or "on" is within the range 2-5V whereas a state of 0 or "off" is within the range 0.0 - 0.8V.

Boolean function synthesis

To recap, elementary computational processes can be represented as logical functions. A function consists in one or more Boolean operators processing bits. For each Boolean operator we can construct a chip that represents its truth conditions. We call these chips logic gates. Logic gates are built with transistors that either block or permit the flow of electric current. This makes them behave in a manner almost identical to mechanical switches.

Now that we know how the individual logic gates work and how they are implemented electronically, we will explore how they can be applied in combination to represent complex logical states that more closely resemble actual computer programs. This process is known as Boolean function synthesis.

We will construct a logic circuit that represents the truth conditions for the following state of affairs:

The team plays on either Monday or Thursday and not at weekends

Let's call this P for ease of reference.

This complex comprises several simpler atomic expressions:

The team plays on Monday
The team plays on Thursday
The team plays at weekends

The first step is to construct a truth table. On the left-hand side we list all the possible truth values for each individual expression. On the right-hand side, we assign an overall truth value for their combination, based on whether or not they reflect the truth conditions for P.

x	y	z	P
1	1	1	0
1	1	0	1
1	0	1	0
1	0	0	1
0	1	1	0
0	1	0	1
0	0	1	0
0	0	0	0

We are only interested in the cases where P is true, so we can discount any lines that result in a truth value of 0 for the complex expresssion. This leaves us with:

x	y	P
1	1	1
1	0	1
0	1	1

Parsing each line, the truth table tells us that our complex expression (P) is true in the following scenarios:

If the team plays on both Mondays and Thursdays but not at weekends
If the team plays on Mondays but not on Thursdays and not at weekends
If the team plays on Thursdays but not on Mondays and not at weekends

We can formalise each case:

(x AND y) AND NOT z
(x AND NOT y) AND NOT z
(NOT x and y) AND NOT z

We now have three logical expressions that if constructed with logic gates would result in a partial representation of P. The representation would be partial because each individual expression only conveys a single aspect of the truth of P, not its totality. For example, if we constructed a circuit that represents (x AND NOT y) AND NOT z, this would only cover occasions where the team plays on Mondays but not on Thursdays (or the weekend). It wouldn't cover the case where the team plays on Thursdays but not Mondays (or the weekend).

We want a circuit that captures all possible instances where P returns true. There are practical benefits to seeking a single implementation. In order to maximise our computational resources we want to use the minimum number of gates in the simplest configuration possible.

We start by concatenating each individual expression into a single disjunctive expression using logical OR:

((x \land y) \land \lnot z) \lor ((x \land \lnot y) \land \lnot z) \lor ((\lnot x \land y) \land \lnot z)

Next, we look for opportunities to simplify this complex expression. This is similar to simplifying equations in mathematical algebra. It is a heuristic process; there is no formal or automated procedure that will work in every case.

NOT z occurs in each of the individual disjunctive expressions. Therefore we can reduce the repetition by using it only once:

(x \land y) \lor (x \land \lnot y) \lor (\lnot x \land y) \land \lnot z

Now we need to consider how we can simplify the remaining expressions:

(x \land y) \lor (x \land \lnot y) \lor (\lnot x \land y)

If we look closely we can see that this expression is displaying the truth conditions for OR. The truth conditions for x and y are:

true if x and y are true
true if x is true and y is false
true if x is false and y is true

This recalls our earlier definition of OR:

x	y	f(x) = x OR y
1	1	1
0	1	1
1	0	1
0	0	0

Thus we can reduce:

(x \land y) \lor (x \land \lnot y) \lor (\lnot x \land y)

to:

x \lor y

The reduction is now complete, allowing us to reduce:

((x \land y) \land \lnot z) \lor ((x \land \lnot y) \land \lnot z) \lor ((\lnot x \land y) \land \lnot z)

to:

(x \lor y) \land \lnot z

If we construct a truth table for the original expression (P) and its simplification (P') we see that they are true under the same logical conditions which demonstrates their equivalence:

x	y	P	P'
1	1	1	1
1	0	1	1
0	1	1	1

Constructing the digital circuit

Now that we have reduced P to its simplest form using the connectives AND, OR and NOT we can construct a circuit using the logic gates for these connectives to represent the overall state of affairs expressed by P.

We will have three input bits which correspond to x, y, z, and a single output bit that will reflect the truth value of P based on the inputs. The input bits will be fed into an arrangement of logic gates that that matches the logical connectives in (x OR y) AND NOT z.

We can confirm that the circuit implementation is an accurate representation of P by toggling the input values to confirm that the output is only 1 when either x or y is true and z is false.

Further simplification with NAND

Our circuit uses three different types of logic gate. This is satisfactory but it would better if we could simplify the circuit even further and use a single gate rather than three. To do so we need to further reduce our logic and introduce another type of logic gate: NAND.

NAND stands for "NOT AND" and its truth conditions are the inversion of AND:

x	y	f(x) = x NAND y
1	1	0
0	1	1
1	0	1
0	0	1

NAND returns 1 whenever x and y are not both true. We will represent NAND in our formulae with the symbol:

\tilde\land

NAND is a universal logic gate. This means that by using NAND gates and only NAND gates, we can represent the truth function of every other logic gate (AND can be expressed with just NAND gates, as can OR and so on). It follows that we can create every possible logical circuit using NAND gates alone.

Let's demonstrate this by reformulating (x OR y) AND NOT z with just NANDs:

( [(x \tilde\land x) \tilde\land (y \tilde\land y)] \tilde\land (z \tilde\land z) ) \tilde\land ( [(x \tilde\land x) \tilde\land (y \tilde\land y)] \tilde\land (z \tilde\land z) )

This is quite difficult to parse, so let's look at the circuit representation and derive its equivalence to (x OR y) AND NOT z:

You will notice that there is repeated forking pattern to most of the inputs. This occurs when the same input value is used for both input pins, equivalent to x NAND x in the equation:

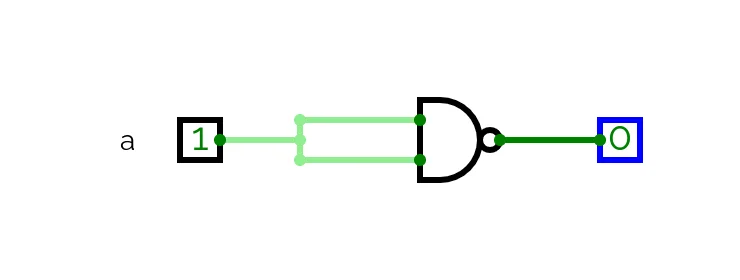

When a NAND is wired to receive the same value for each input, it embodies the truth conditions for NOT: in the diagram above when a is 1 the output is 0 and when a is 0 the output is 1.

If we feed two of these sub-circuits into a NAND, we observe that the output is consistent with the truth conditions for OR:

This is equivalent to the (x NAND x) NAND (y NAND y) section of our NAND equation which we can see is equivalent to x OR y.

The final part of the NAND equation is dedicated to: NOT z. This is achieved by using another forking NAND and applying it to z, this is then joined with the existing fragment via a NAND to give:

( [(x \tilde\land x) \tilde\land (y \tilde\land y)] \tilde\land (z \tilde\land z) )

Which is then itself forked into a NAND to give the final output.

This is harder to parse than the implementation that used three different operators but the point is just to demonstrate that such a reduction is possible and that complex abstract states can be constructed from the concatenation of primitive electronic components.

Hardware Description Language

Digital circuits can be designed using a Hardware Description Language (HDL) and simulation software. An HDL is a declarative programming language used to describe the behaviour and structure of digital circuits. In Nand To Tetris the HDL is Hack, a simplified HDL for teaching purposes.

An HDL file uses specialised syntax to describe the function and implementation of a given chip. When it is fed into a simulator, we can test the chip's outputs against a variety of inputs to check it is working as intended.

Below is an HDL specification file for the NAND logic gate written in Hack:

CHIP Nand {
    IN a,b;
    OUT out;

    PARTS:
    And(a=a,b=b,out=w);
    Not(in=w1,out=out);
}

The code contains two sections:

the interface (CHIP, IN, OUT)
the implementation (PARTS)

The interface names the chip and designates its input and output pins. In the example, the interface specifies two input pins (a and b) and a single output pin (out).

The interface abstracts the actual implementation of the chip. It only tells us the inputs and output, not how the output is generated from the input. This is provided by the implementation section which details the internal workings of the chip.

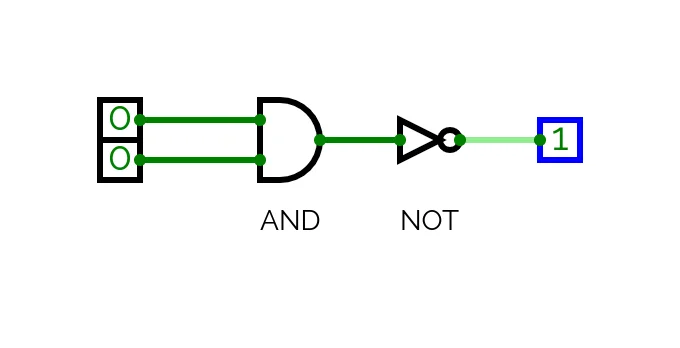

The NAND implementation invokes two other gates, AND and NOT. We are simply taking the output of AND and inverting it with NOT. The HDL specification describes the following circuit:

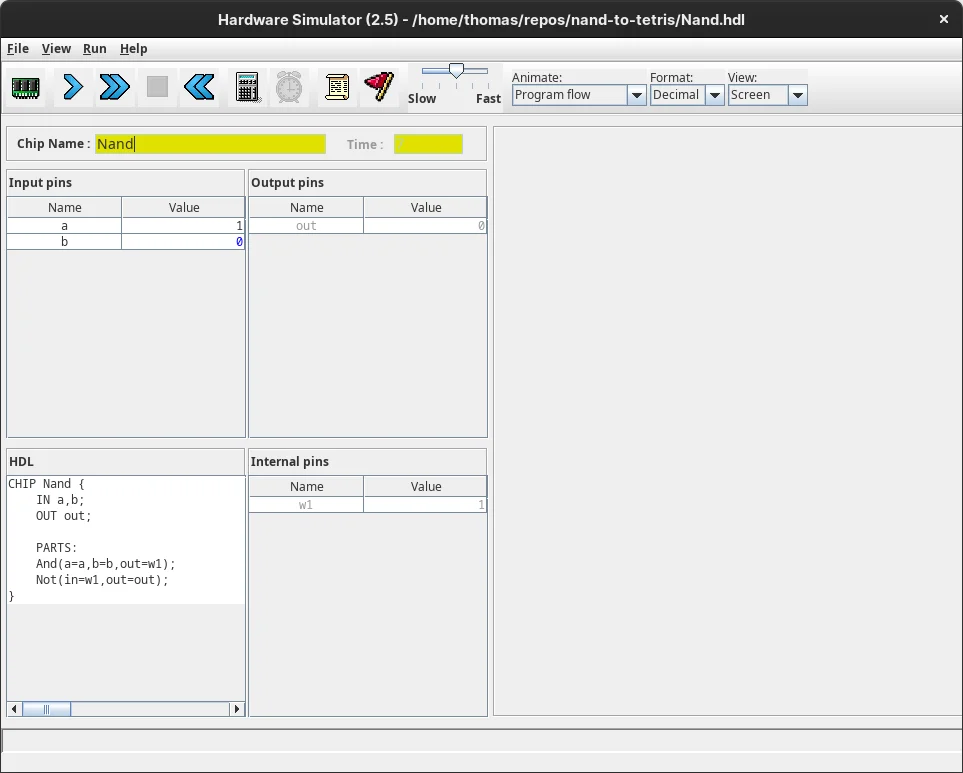

Having defined the gate we can load it into the simulator and test its behaviour.

We can change the values of the input pins and observe how this affects both the output and the interim outputs of the implementation (ie. w1).

To be more efficient we can create a test file that runs through all our expected outputs:

# Nand.tst

load Nand.hdl,
output-file Nand.out,
compare-to Nand.cmp,
output-list a%B3.1.3 b%B3.1.3 out%B3.1.3;

set a 0,
set b 0,
eval,
output;

set a 0,
set b 1,
eval,
output;

set a 1,
set b 0,
eval,
output;

set a 1,
set b 1,
eval,
output;

We feed the test file into the simulator along with the following comparison file and it will compute whether the chip conforms to our expectations:

# Nand.cmp

|   a   |   b   |  out  |
|   0   |   0   |   1   |
|   0   |   1   |   1   |
|   1   |   0   |   1   |
|   1   |   1   |   1   |

Coursework

The task for the first unit was to use Hack to create the set of logic gates and chips that will later be utilised in the construction of the computer. You are provided with NAND as a primitive and from this you build the other gates. Once a working gate has been constructed from NAND you are permitted to use it in the construction of subsequent gates. For example if you have made an OR gate solely out of NANDs, you may then use OR along with NAND to create XOR.

Below I have listed the HDL files for each gate along with a simulation of the circuit implementation.

Gates

NOT

CHIP Not {
    IN in;
    OUT out;

    PARTS:
    Nand(a=in,b=in,out=out);
}

AND

CHIP And {
    IN a, b;
    OUT out;CHIP DMux {
    IN in, sel;
    OUT a, b;

 PARTS:
    Not(in=sel,out=nsel);
    And(a=in,b=nsel,out=a);
    And(a=in,b=sel,out=b);
}
    Not(in=w1,out=out);
}

OR

CHIP Or {
    IN a, b;
    OUT out;

    PARTS:
    Nand(a=a,b=a,out=w1);
    Nand(a=b,b=b,out=w2);
    Nand(a=w1,b=w2,out=out);
}

XOR

CHIP Xor {
    IN a, b;
    OUT out;

    PARTS:
    And(a=a,b=notb,out=w1);
    Not(in=b,out=notb);
    And(a=b,b=nota,out=w2);
    Not(in=a,out=nota);
    Or(a=w1,b=w2,out=out);
}

Chips

As well as the basic logic gates, the first unit introduced additional chips that are essential for constructing a working computer. These chips represent more complex states that the logical operators but proceed on the same functional and modular basis: input values are processed internally to produce output values and the implementation can utilise previously constructed logic gates.

MUX (Multiplexer)

A multiplexer selects one of several input pins and forwards the selection to a single output pin. There are three pins: two input bits (A, B) and a selection bit (SEL). When SEL is applied the output bit is toggled between A and B. Multiplexers are essential to the construction of large digital circuits as they implement data selection and switching on the basis of logical conditions.

CHIP Mux {
    IN a, b, sel;
    OUT out;

    PARTS:
    Not(in=sel,out=w1);
    And(a=w1,b=a,out=w2);
    And(a=sel,b=b,out=w3);
    Or(a=w2,b=w3,out=out);
}

DMUX (Demultiplexer)

As the name suggests, a demultiplexer reverses the functionality of a multiplexer. It receives a single input, and based on the SEL value channels it to either an A or B output.

CHIP DMux {
    IN in, sel;
    OUT a, b;

    PARTS:
    Not(in=sel,out=nsel);
    And(a=in,b=nsel,out=a);
    And(a=in,b=sel,out=b);
}

Multi-bit chips

Multi-bit chips are variants of the chips and gates already produced. The logic of a multi-bit AND is the same as the logic for a normal AND gate. They differ only in the number of bits they can receive and output.

In a real computer, passing single 1s and 0s into chips would be inefficient since very little information can be represented or encoded in a single bit. When we build the computer we will be passing values with a bit-length of 8-bits (a byte) as a miniumum (e.g. 10101100) and we need chips that can handle bits of this length.

For illustration, here is the HDL implementation of an AND-16:

CHIP And16 {
    IN a[16], b[16];
    OUT out[16];

    PARTS:
    And(a=a[0],b=b[0],out=out[0]);
	And(a=a[1],b=b[1],out=out[1]);
	And(a=a[2],b=b[2],out=out[2]);
	And(a=a[3],b=b[3],out=out[3]);
	And(a=a[4],b=b[4],out=out[4]);
	And(a=a[5],b=b[5],out=out[5]);
	And(a=a[6],b=b[6],out=out[6]);
	And(a=a[7],b=b[7],out=out[7]);
	And(a=a[8],b=b[8],out=out[8]);
	And(a=a[9],b=b[9],out=out[9]);
	And(a=a[10],b=b[10],out=out[10]);
	And(a=a[11],b=b[11],out=out[11]);
	And(a=a[12],b=b[12],out=out[12]);
	And(a=a[13],b=b[13],out=out[13]);
	And(a=a[14],b=b[14],out=out[14]);
	And(a=a[15],b=b[15],out=out[15]);
}

Instead of a single-bit AND gate that takes two single-bit inputs and produces a single-bit output, the 16-bit AND takes two 16-bit inputs and produces a single 16-bit output. Each bit of the output is determined by the AND operation which is executed on each of the input bits.

Don't be confused by the base-10 numbers: we are still working with binary values however we use denary digits to individuate each bit in the 16-bit number. For example if a = 10101111, a[4] refers to the fourth bit in a counting from the right-hand side (0).

In addition to And16 I created multi-bit variants of OR, NOT, MUX and DMUX.

Multi-way chips

I also produced multi-way variants of some of the main gates and chips. These versions accept more than the standard one or two input pins but execute the same logic. For example instead of a standard 2-pin input AND gate, a 3-pin input AND gate would take three inputs and produce a 1 output when all three inputs are 1.

An example of a multi-way chip that I constructed is OR-8-WAY. This chip outputs 1 when any of its 8 inputs is 1. If all inputs are 0, it outputs 0:

CHIP Or8Way {
    IN in[8];
    OUT out;

    PARTS:
 	Or(a=in[0],b=in[1],out=a);
	Or(a=a,b=in[2],out=b);
	Or(a=b,b=in[3],out=c);
	Or(a=c,b=in[4],out=d);
	Or(a=d,b=in[5],out=e);
	Or(a=e,b=in[6],out=f);
	Or(a=f,b=in[7],out=out);
}
